Description
micro dc gear motor M20 Gear DC MotorM20 Gear DC Motor 24 * 10 * 8mm 2. 5mm Output Shaft Description: These micro DC gear motors are small in size but have big torque comparatively speaking. They run with very low noise and are reliable in quality. They are rated at 3VDC, but can run with the voltage between 2. 0~6. 0VDC. The rotation can start at voltages as low as 0. 5 V. Measurements: Body: 24 * 10 * 8mm (excluding output shaft) Output shaft length: 10mm Output shaft diameter: 2. 5mm

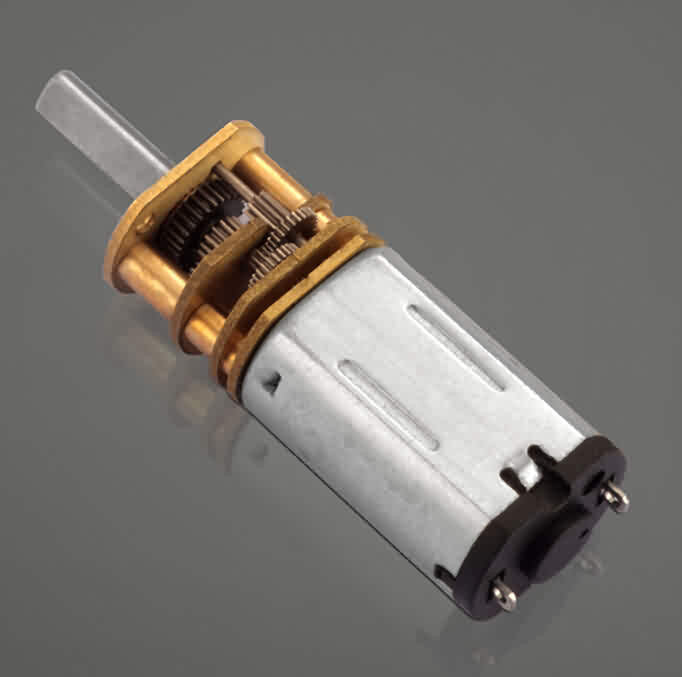

M20 Gear DC Motor - 24 * 10 * 8mm / 2.5mm Output Shaft
Description:
These micro DC gear motors are small in size but have big torque comparatively speaking. They run with very low noise and are reliable in quality.
They are rated at 3VDC, but can run with the voltage between 2.0~6.0VDC. The rotation can start at voltages as low as 0.5 V.
Measurements:
Body: 24 * 10 * 8mm (excluding output shaft)
Output shaft length: 10mm
Output shaft diameter: 2.5mm
Technical Parameter:
| Gear Ratio | Free-run Speed@3V(rpm) | Rated Speed@3V(rpm) | Rated torque@3V(kg.cm) |
| 100:1 | 150 | 130 | 0.06 |
| 250:1 | 60 | 50 | 0.15 |
